Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Ruituo
  • Model Number: GZ 35B-12
  • Theory: Vacuum Pump
  • Structure: Diaphragm Pump
  • Usage: Air Pump
  • Power: Electric, 100w
  • Standard or Nonstandard: Nonstandard
  • Fuel: Electric
  • Pressure: Low Pressure
  • Application: Vacuum lifter
  • Product name: Air vacuum pump
  • Color: Black
  • Model no: GZ 35B-12
  • Type: Oil free diaphragm vacuum pump
  • Medium: Gas
  • Vaccum flow rate: 70L/min
  • Max vacuum: 23.6in.Hg( -800mbar)
  • Energy supply: DC
  • Voltage: 12V,24v

Packaging & Delivery

Packaging Details: foam box+carton.Customization is also acceptable.
Delivery Detail: 30 days/3000pcs





Product Description

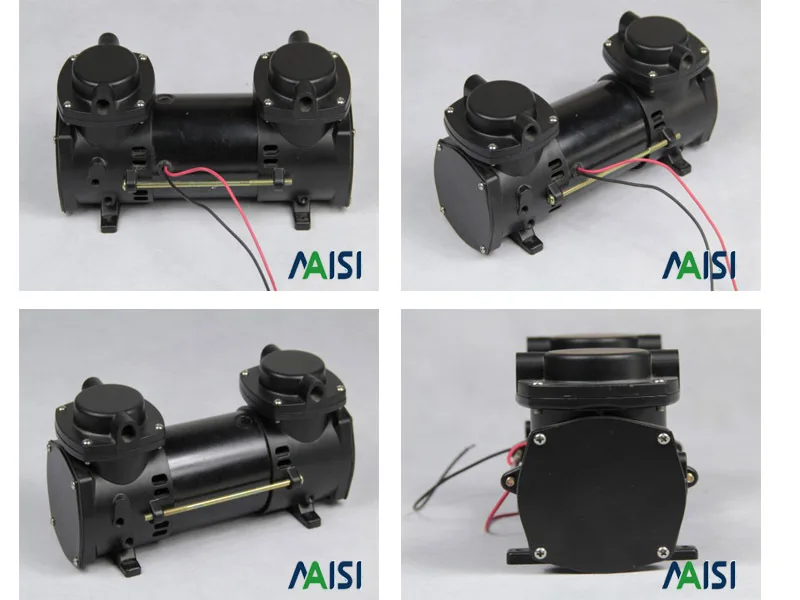

 Productmini air   diaphragm vacuum pump
model noGZ35B-12
typeOil free diaphragm vacuum pump
 Medium Gas
vaccum flow rate70L/min
max vacuum-23.6in.Hg( -800mbar)
Energy supplyDC
power160w
Voltage12V,24v
Speed2800RPM

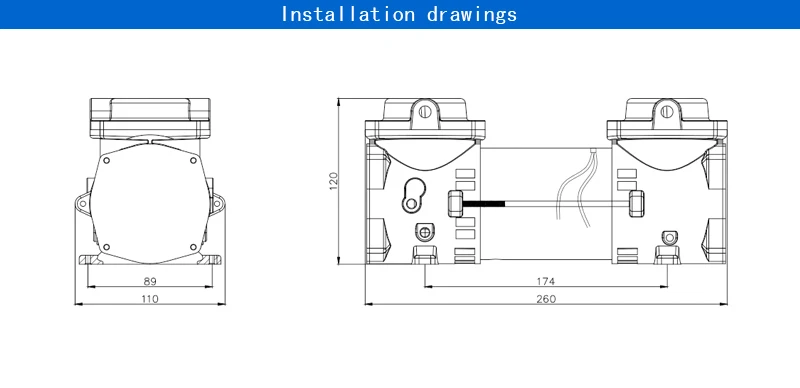

Specification260*110*150mm
Weight

3.2kg







Principle of the Diaphragm mini air  diaphragm vacuum Pump

An elastomer diaphragm (see illu-stration) is moved up and down by an eccentric. On the down-stroke it draws the air or gas being handled through the inlet valve.On the up-stroke the diaphragm forces the medium through the exhaust valve and out of the head. The compression chamber is her-metically sealed from the drive mechanism by the diaphragm. The pumps transfer, evacuate, and compress completely oil-free.



Features of diaphragm pumps

  • uncontaminated transfer, no pollution of the media
  • 100% maintenance-free compact design
  • smooth running easy installation
  • with very few exceptions, the pumps can operate in any installed position

Applications

  • The small electric vacuum pump are installed in devices, units and plants in, for example
  •  the chemical industry medical and laboratory equipment
  •  measuring and analytical systems
  • environmental technology print technology
  • rinsing and cleaning research
